PM60EA/8C BNC Encoder , 8ch BNC input, accept TVI CVI AHD and CVBS input, output standard RTSP Stream,
plus PTZ control by Pleco D & P
In general
PM60EA/8C BNC encoder is our latest developed professional high-definition
audio and video encoding products.accept TVI CVI AHD and CVBS input, output standard RTSP Stream,
plus PTZ control by Pleco D & P. The product supports 8 channel BNC input, Support H.264 format.
The device is highly integrated, cost-effective. Support external
audio input.
Features
◆ Support H.264 encoding format
◆ Support HDMI input, input support 4K/1920*1080/1280*720/1366*768
etc. ;
◆Output support 4K, 1080P, 720P and D1
◆ Support RTSP protocol;
◆ Support multi-stream selection, the main stream and sub stream;
◆ Support stream control, the range 0-10240kbps;
◆ Support variety of transmission protocol selection, TCP and UDP;
◆ audio input support HDMI inner input & audio-line external 3.5mm
port input.
◆ Support the same stream multi-point access;
◆ Support WEB access, configuration and management;
◆ English OSD, font & position can set
◆ Support local upgrades and remote upgrades;
◆ Support multi-device configuration/update synchronization;
◆ support alarm indicate when there is input failure ;
◆ Support time settings, synchronized with the local computer or
with the NTP server
Specification and parameter
| Connector |
| Ethernet | RJ45 port, 100M/1000Mbps self-adaptive |
| BNC | 8 BNC port for video input |
| RS422 | RJ45 , 1 RS422 |
| RS232 | RJ45, 1 RS232 |
| Audio | 1in 1out, 3.5mm micro port |
| Power | Stand alone:DC12V, chassis mount: power from backboard. |
| Video & audio |
| Video input | Support HD-TVI, HD-CVI, AHD & CVBS |
| Video input standard | Suport NTSC,PAL, 960H, HD-TVI (720p@25Hz, 720p@30Hz), HD-CVI
(720p@25Hz, 720p@30Hz) |
| Encoding | H.264 |
| Resolution | 1080p/720p/D1/CIF |
| Encoding capability | 4ch 1080p or 8ch 720p |
| Encoding frame rate | 1-30fps |
| Encoding code rate | 10Mbps maximum |
| Audio input | Reserved |
| Audio output | Reserved |
| Video format | H.264,MPEG4 |
| Audio format | G.726,G.711a/u,AAC |
| Communication |
| Control method(RX) | Network |
| Control protocol(RX) | Onvif or private protocol |
| Control method(TX) | Coaxitron, RS-485 |
| Control protocol(TX) | Pelco C, Hik-C, Pelco-P Pelco-D |
| System |
| Language | English/chinese |
| WEB | Browser, set, management |
| Firmware update | IE |
| Stream | Support primary stream/sub stream configure individually Support multiple stream request Support Multicast & Unicast |
| OSD overlap | Support |
| Video loss alarm | Support |
| Network protocol | HTTP, RTSP, TCP, UDP, RTP, ARP |
| Environment |
| Power supply | Stand alone : DC12V , chassis mount: power adapter. |
| Power consumption | ≤8W |
| Working temperature | 0℃～55℃ |
| Working humidity | 10%～90% |

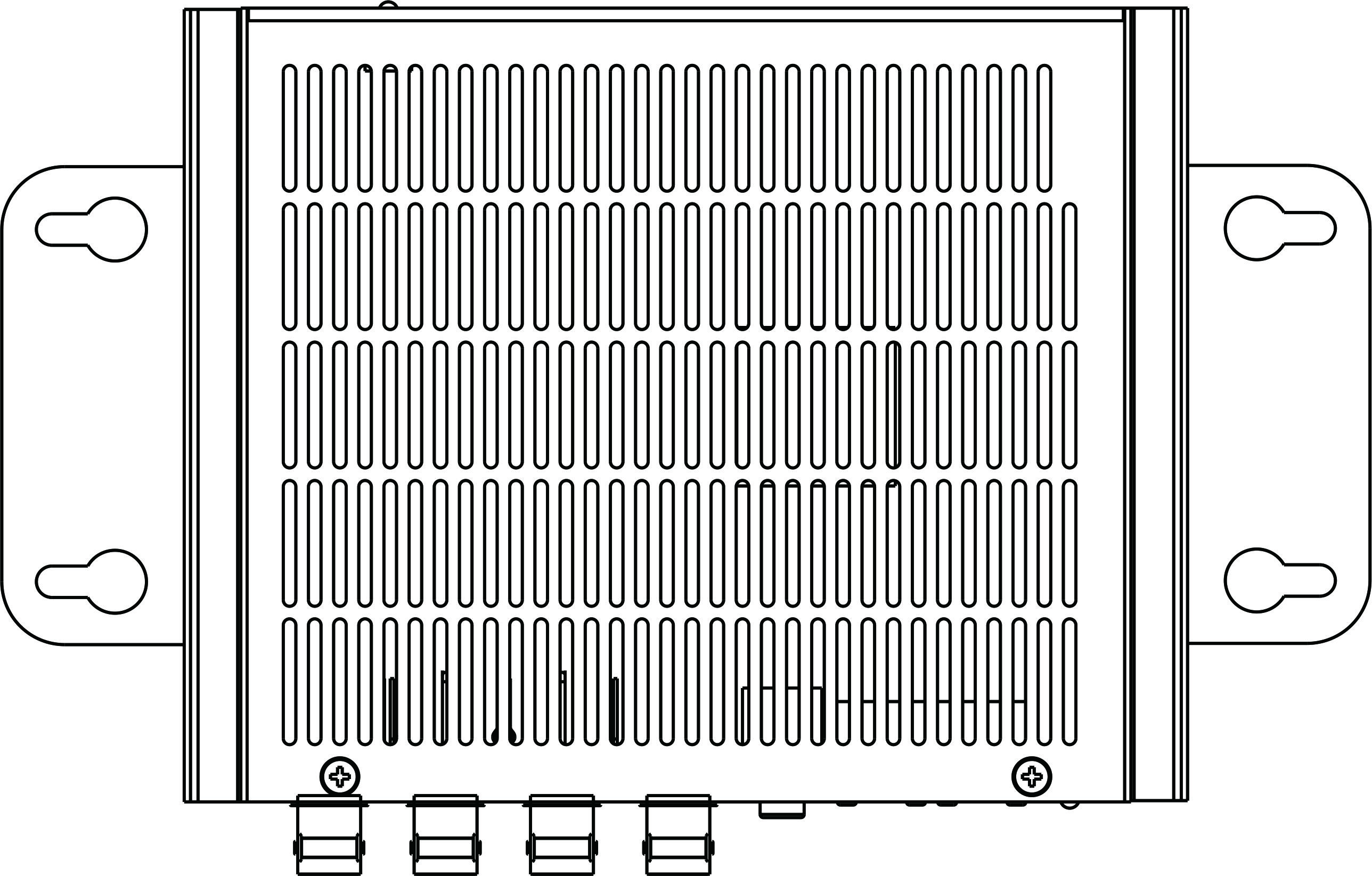

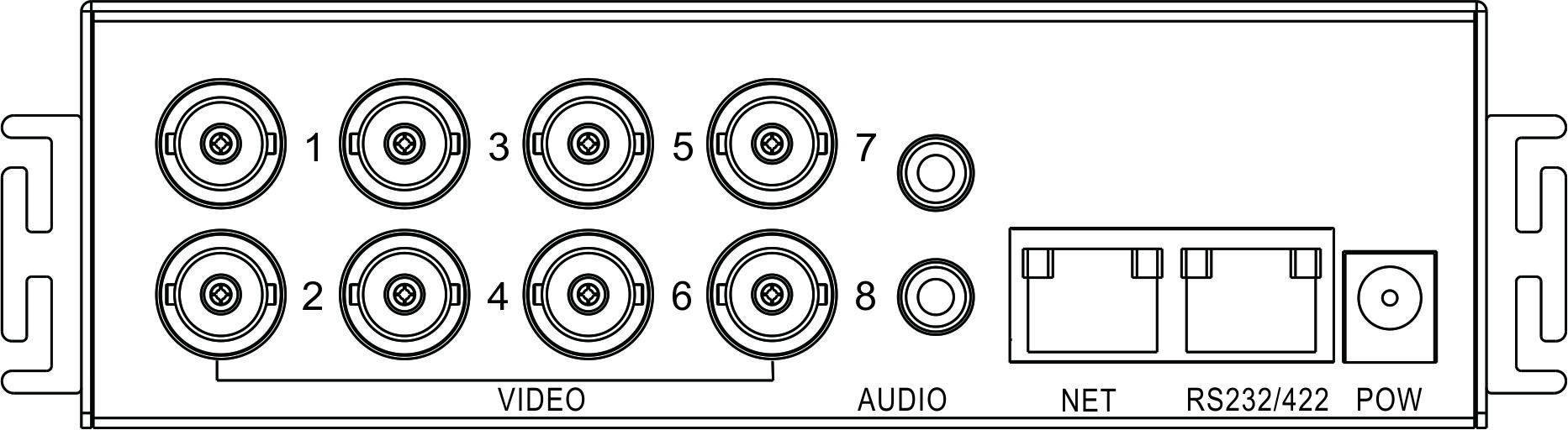

Drawings:
