Network Portable PTZ Camera With 400m Laser, ONVIF Protocol & H265 Complicant

Ask Lasest Price
Brand Name :	pearmain or OEM
Model Number :	111530L2-IP
Certification :	CE, FCC, UL
Price :	negotiation
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	100units per week
Delivery Time :	7 working days

Add to Cart

Product Details
Company Profile

Network Portable PTZ Camera With 400m Laser, ONVIF Protocol & H265 Complicant

111530L2-IP network PTZ Camera with 400m laser, 1080p, 30x optical zoom, portable application
In general
With 400m laser illuminator to make PE1115-30L-IP easy to penetrate the usual camera difficult to overcome common obstacles, such as forest, camouflage nets, heavy fog etc. to have clear images of personnel, vehicles and other targets at night, and also it can achieve continuous monitoring of day and night.

Features
H.264/265 main profile, support 4 code stream, ONVIF compliant .
1/2.8’’ Progressive Scan CMOS, up to 1920x1080, 30x optical zoom
25 fps at HD1080p
It could penetrate through the forest and camouflage net compared with other cameras which could not carry out this function. Use high-quality synchronous laser, laser focusing lens with times synchronization, laser distance is more than 400 meters It could widely use for the environment such us night, bad environment, and farther range control. Weather proof design, high die-cast aluminum construction, anti-shock, anti-corrosion, the protection grade IP66, with wiper function. 360°continuously rotation, the range upward angle up to 180°, no blind spot . 128 preset positions and with 6 cruising tracks
Compass, temperature display
Power supply AC24V or 12VDC optional.

Specifications
Mechanical

Pan angle	0°～360° Continuously
Pan speed	0°～160°/s
Tilt angle	0°～90°
Tilt speed	0°～80°/s
Accuracy	±0.1°
Work temperature	-35℃～+55℃
Work humidity	<95%
Water proof	IP66
Fan and heater	Temperature control automatically(<0℃, turn on the heater; >40℃, trigger the fan)
Dimension	Φ228 *290(h)mm
Weight	7.5KG

Network
Ethernet:	10Base -T, /100Base-TX, RJ45 Connector
Max. Image Resolution:	1920×1080
Frame Rate:	50Hz: 25 fps (1920×1080), 25 fps (1280×960) , 25 fps (1280×720)
Frame Rate:	60Hz: 30 fps (1920×1080), 30 fps (1280×960) , 30 fps (1280×720)
Image Compression:	H.265/264 / MJPEG
ROI encoding:	Support 2 areas with adjustable levels
Audio Compression:	G.711ulaw/G.711alaw/G.726/MP2L2
Protocols:	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users:	Up to 20 users
Dual Stream:	Support
Mini SD Card:	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level:	Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures:	User authentication (ID and PW), host authentication (MAC address)
EZVIZ:	Support

Camera
Image Sensor:	1/2.8" Progressive Scan CMOS
Effective Pixels:	1920(H)x1080(V)
Signal System:	PAL/NTSC
Minimum Illumination:	Color : 0.05 lux (F1.4, 1/30 sec, 50 IRE, AGC On)
	B/W : 0.01 lux (F1.4, 1/30 sec, 50 IRE, AGC On) 0 lux with IR
	Color : 0.02 lux (F1.4, 1/1 sec, 50 IRE, AGC On)
	B/W : 0.002 lux (F1.4, 1/1 sec, 50 IRE, AGC On) 0 lux with IR
White Balance:	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:	Auto/Manual
S/N Ratio:	≥ 52dB
BLC:	ON/OFF
HLC:	Support
Smart defog:	Support
WDR:	Support
Shutter Time:	1-1/10,000s
Day& Night:	ICR
Digital Zoom:	16X
Privacy Masking:	2 privacy masks programmable
Auto Focus:	Auto / Semi-automatic / Manual
Lens
Focal Length:	4.3-129mm, 30x
Zoom Speed:	Approx.3s(Optical Wide-Tele)
Angle of View:	65.1-2.34 degree (Wide-Tele)
Minimum Working Distance:	10-1500mm(Wide-Tele)
Aperture Range:	F1.6-F5.0

Client GUI
Camera Control:	Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display:	Time: Week: Date, 6 formats on the Client
Client:	Support iVMS-4200
Web Browser:	IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +

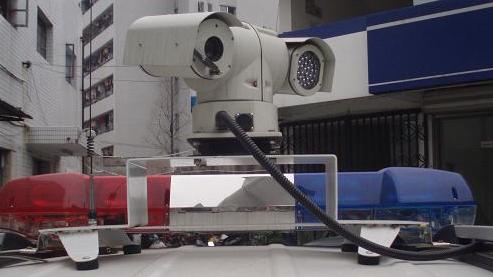

application:
portable application like vehicle
