4MP Security Camera, Network PTZ Speed Dome Camera Perfect
Integrated Object Tracking, 37x Optical Zoom, Pan & Tilt
1116-437L2-IP 4MP Security camera, Network PTZ Speed Dome Camera integrated with Object Tracking
Module inside, offer standard onvif stream.pan & tilt, outdoor, Portable Design, H265/264 & Onvif compatible, 400m laser illuminator, 37x optical
zoom.
In general
This PE1116-437L2-IP 4MP Security camera is network ptz camera
furnishes with object tracking algorithm, offer standard onvif
stream, it could program object track on its webpage, it could
achieve very precise track performance on human or other object not
higher 15km per hour.
This ptz is with a 4MP, 37x optical zoom network camera, laser
illumination or thermal camera is optional to make this PTZ have
visible light, low illumination, bad haze weather, night and other
24/7 uninterrupted target recognition and tracking.
High duty die-cast shock-absorbing alloy housing with strong
painting for Waterproof and corrosion proof, Heat insulation, high
temperature and cold resistance, impact resistance, corrosion
resistance, with good wind resistance and shock
absorption performance.
Features
H.264/265/MJPEG main profile, support 3 code stream, ONVIF
compliant.
Integrated with object tracking algorithm, offer standard onvif
stream, it could program object track on its webpage, it could
achieve very precise track.
Extremely starlight camera, 1/1.8’’ Progressive Scan CMOS, up to
2560*1440, 37x optical zoom.
It could penetrate through the fog.
Use high-quality synchronous laser, laser focusing lens zoom
synchronization, laser distance is more than 400 meters. It could
widely use for the environment such us night, bad environment, and
farther range control. Weather proof design, high die-cast aluminum
construction, anti-shock, anti-corrosion.
IP66 waterproof, with wiper. 360°continuously rotation, the range
upward angle up to 180°, no blind spot . 128 preset positions and
with 6 cruising tracks
Compass, temperature display
Power supply AC24V or 12VDC optional.
Portable design for vehicle application.
Specifications
Mechanical
| Pan angle | 0°～360° Continuously |
| Pan speed | 0°～160°/s |
| Tilt angle | 0°～90° |
| Tilt speed | 0°～80°/s |
| Accuracy | ±0.1° |
| Work temperature | -35℃～+55℃ |
| Work humidity | <95% |
| Water proof | IP66 |
| Fan and heater | Temperature control automatically(<0℃, turn on the heater;
>40℃, trigger the fan) |
| Dimension | Φ228 *290(h)mm |
| Weight | 8.0KG |
Laser spec.
| Wavelength | 808±5nm |
| Safe grade | Class 4 (FDA,IEC) |
| Illumination angle | Electric synchronous zoom,0.8°to72° continuously adjustable |
| zoom speed | Less than 10 seconds (Wide-Tele) |
| Output power | 4W |
| Illumination angle | Wide 0.8°: effective distance≥1500meter, spot diameter:21m Tele 72°: effective distance≥40meter, spot diameter:58m |
| Power Consumption | <28W |
Network camera Module
| Details | 37x optical zoom, 4.0mp 1/1.8" CMOS ICR D/N network camera |
| Camera | Sensor type | 1/1.8" Progressive Scan CMOS |
| Signal system | PAL/NTSC |
| minimal illumination | color:0.0005Lux @ (F1.6,AGC ON) |
| B/W:0.0001Lux @(F1.6,AGC ON) |
| Day And Night System | ICR Infrared filter |
| electronic shutter | 1/25sec ~ 1/100,000sec |
| Main stream | 50Hz: 25fps (2560*1440,1920 × 1080, 1280 × 960,
1280 × 720) |
60Hz: 30fps (2560*1440,1920 × 1080, 1280 × 960,
1280 × 720) |
| 3th stream and frame ratio | 50Hz: 25fps(704 ×576); 60Hz: 30fps(704 ×576) |
| Lens | Focus | 6.5-240mm, 37x optical |
| Iris | F1.5-F4.8 |
| Horizontal view angle | 70.0-2.51°(Wide-tele) |
| distance | 100-1500mm(Wide-tele) |
| zoom speed | approx. 4 sec(optical,Wide-tele) |
| functions | Exposure mode | Ae/aperture priority, shutter priority/manual exposure |
| Focus mode | Auto focus/one time focus/manual focus |
| Backlight compensation | support |
| RS485 | Communication protocol/baud rate/address |
| Compression standard | Video Compression | H.265 /H.264 /MJPEG |
| Bit Rate | 32 Kbps~12Mbps |
| Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM |
| Bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-6
4Kbps(AAC) |
| Network | Network Storage | support micro SD |
| Alarm Trigger | Motion detection, tampering alarm, storage full, storage mistake,
audio exception, etc. |
| protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,
SMTP,
NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP,optional) |
| universal | Dual stream, heartbeat, password protection |
| Web page |
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging,
Iris, preset calling and programming, auto mode |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client |
| Web Browser: | IE 7+, Google 42-, Firefox 5.0 + |

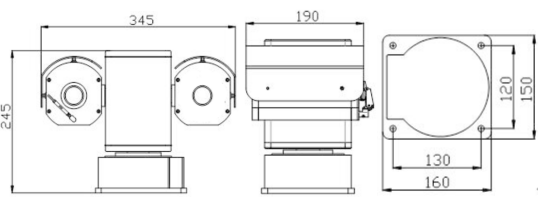

Dimension:
Applications:
Detection and track including human, movement speed within
15km/hour ,it could automaitically detect, identification,
track,etc.
