PE5100K Keyboard controller for network Matrix switcher or Platform (Milestone, etc.) for its ptz control

Quick Detail:

Camera switch: First select the target decoder channel number in IVS client, “N+WIN”; “N” is for window number. Second, enter the camera number which you want display ‘N+CAM’, ‘N’ is for camera number.

PTZ control: control the target camera’s direction by keyboard joystick control up/down/left right, the PTZ turning will follow joystick operation, when the joystick return to center position, PTZ stop moving.

Preset setting: setting the preset for target camera; operation ‘N(preset number)+SHOT+PRESET’

Calling preset: calling the camera with preset; ‘N+PRESET’, ‘N’ is for preset number.

Monitor splitting: increase or decrease the windows on monitor by splitting; ‘N+MON+N+MULT’, N+MON is for target monitor number; ‘N+MULT’ is for splitting quantity.

Description:

PE5100K is keyboard controller for Pearmain Network Matrix switcher, also it is a universal network keyboard controller for plafform e.g. Milestone, Huawei IVS, etc. on base of SDK integration.

Specifications:

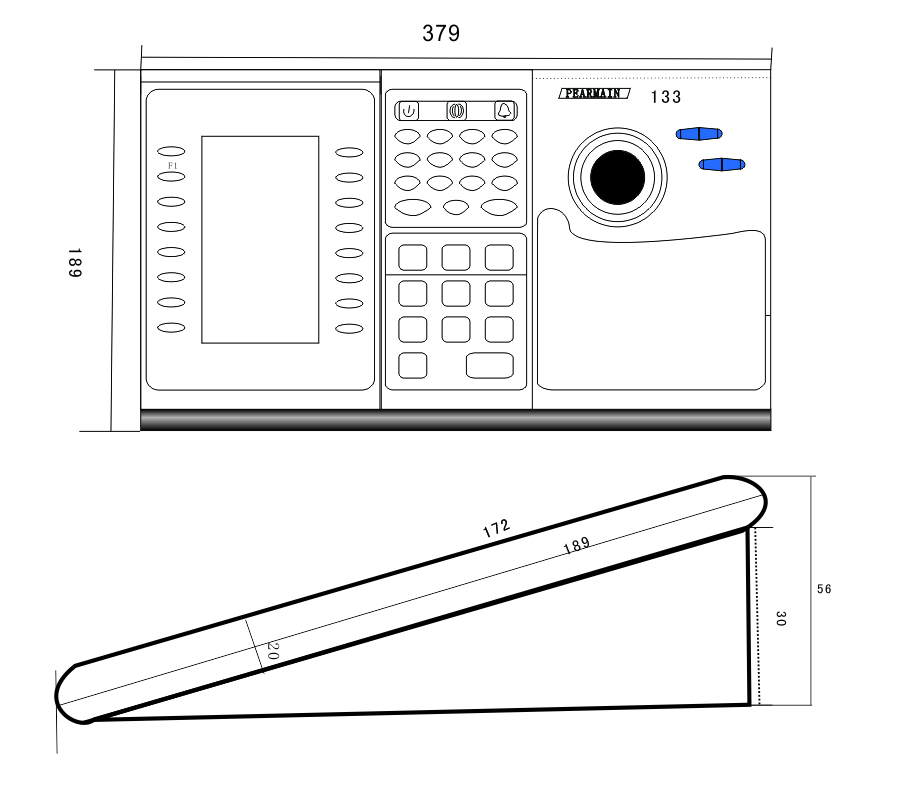

Dimensions:

Our products bear CE, FCC, UL and RoHS marks
